Articulating Borescope
5-inch IPS full HD screen (1280×720) · IP67 waterproof & oil-proof · Swappable battery · 360° universal articulation
M6 Series Industrial Video Borescope

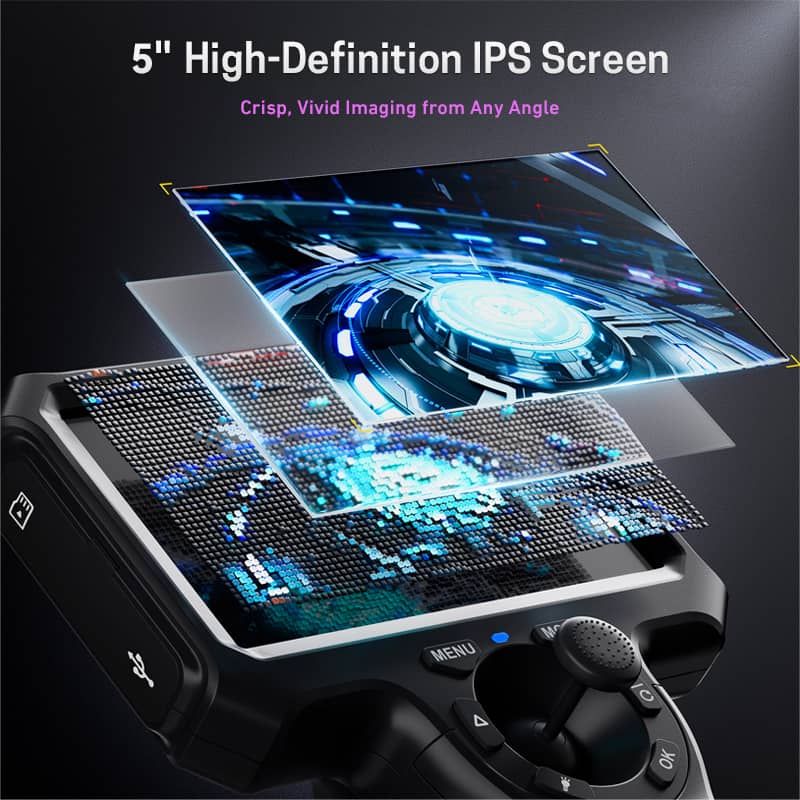

High-strength tungsten braided snake tube, 360° universal articulation for precise and flexible control. 5-inch IPS full-view screen (1280×720) delivers clear and detailed images. IP67 waterproof and oil-proof, suitable for confined spaces and harsh environments. Built-in swappable high-capacity battery (4400mAh) provides about 3 hours of continuous operation. Real-time temperature monitoring, automatic shutdown above 90°C, plus photo, video, and playback functions.
- 360° universal
- Real-time temperature
- Swappable battery
- IP67 waterproof
- Overheat shutdown
- TF card storage
M604
- Probe diameter: Φ3.9mm
- Bending radius: 25mm
- Field of view: 100°
- DOF: 8~80mm
- Effective pixels: 1280×720
M606
- Probe diameter: Φ6.0mm
- Bending radius: 30mm
- Field of view: 100°
- DOF: 8~80mm
- Effective pixels: 1280×720
| Parameter | M604 | M606 |
|---|---|---|
| Display | 5-inch IPS screen (1280×720) | |
| Menu languages | Simplified Chinese, Traditional Chinese, Japanese, English, Korean, French, Russian, Spanish, German | |
| Functions | Photo / Video recording / Playback / Image rotation / Real-time temperature display | |
| TF memory card | Supports up to 128GB | |
| Real-time temperature | Numeric temperature display on screen | |
| Articulation method | 360° universal joystick control, any direction | |
| Articulation life | ≥20,000 cycles | |
| Snake tube length | 1m / 2m / 3m customizable (standard 1m) | |
| Snake tube material | Tungsten braided mesh + flexible snake tube | |
| Effective pixels | 1280×720 | |
| Probe diameter | Φ3.9mm | Φ6.0mm |
| Bending radius | 25mm | 30mm |
| Field of view (FOV) | 100° | 100° |
| Depth of field (DOF) | 8~80mm | 8~80mm |
| LED illumination | 6 adjustable high-brightness LEDs | |
| Waterproof rating | IP67 (probe and insertion tube, water and oil resistant) | |
| Overheat protection | Automatic shutdown above 90°C | |
| Battery | 3.7V 4400mAh rechargeable lithium battery (removable & replaceable) | |
| Operating time | Approx. 3 hours (medium brightness) | |
| Charging interface | DC 5V/2A (Type-C) | |
| Operating environment | -10°C ~ 50°C, humidity <90%RH | |
| Certifications | CE, FCC, ROHS, Patent | |
| Package dimensions | Box: 44.4×33.3×9cm / Carton: 46.5×34.5×46cm | |
Professional Applications
Industrial Manufacturing & Precision Machinery
Inspect gearboxes, molds, weld quality – quickly detect burrs, cracks, and foreign objects
Automotive Repair & Inspection
Visual inspection of engine cylinders, turbochargers, transmissions – avoid unnecessary disassembly
Piping & HVAC
Real-time view of blockages or corrosion inside AC ducts, drain pipes, and heating systems
Aerospace & Marine
Non-destructive testing of turbine blades, airframes, hull piping – fit into narrow curved spaces
